LINE 01
25CAPABILITIES & QUALITY

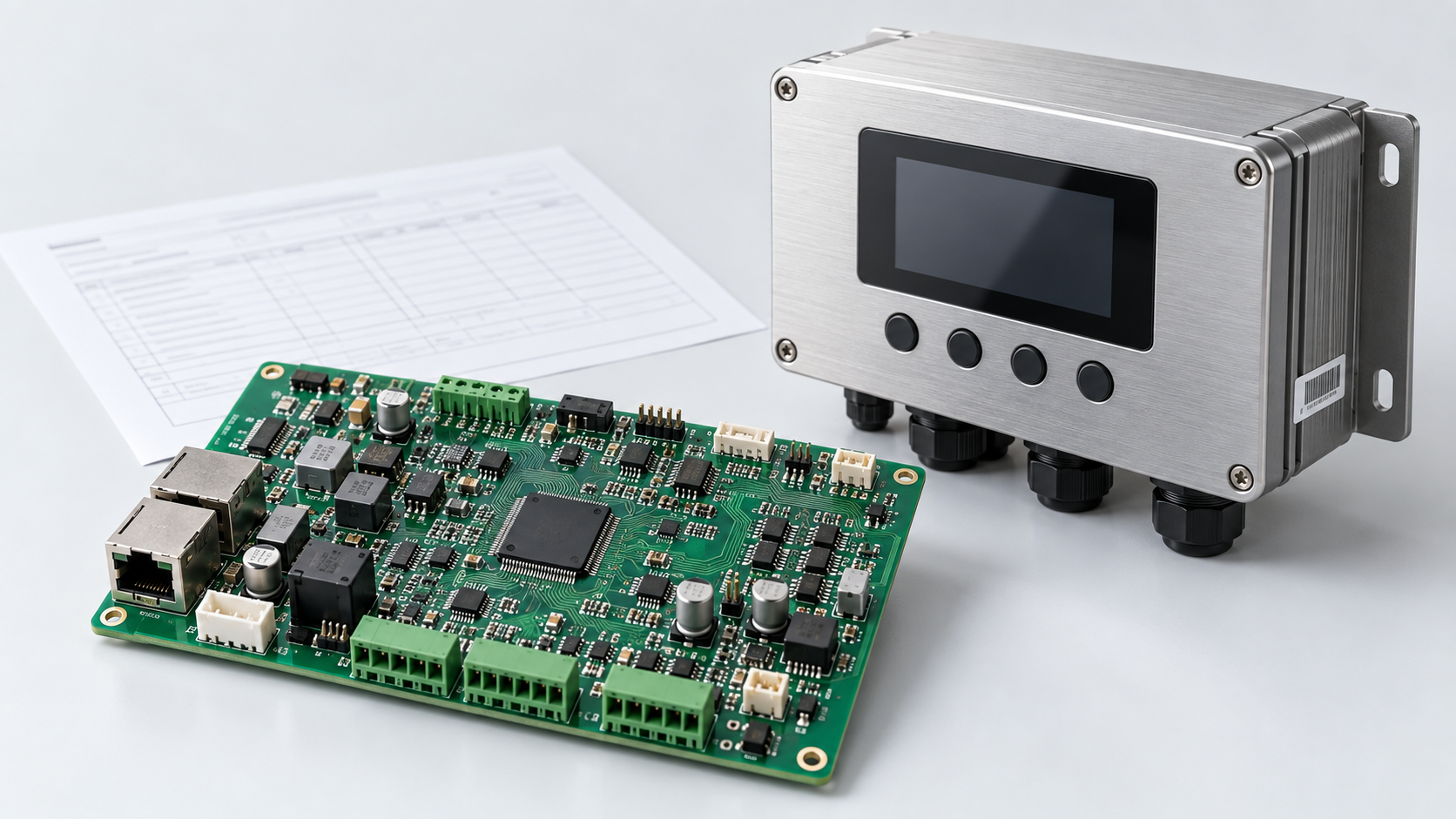

Manufacturing Capabilities & Quality
Manufacturing Capabilities & Quality at GUANWEIER, a one-stop PCBA and EMS manufacturing partner in Fuhai, Bao'an, Shenzhen.
VERIFIED LINE MATRIX
Core production-line configuration
SMT, DIP, soldering, test and box-build lines are presented in one compact matrix. Project scope is confirmed from the submitted data.
LINE 02
4DIP insertion lines
LINE 03
3Soldering lines
LINE 04
3Test lines
LINE 05
3Box-build lines
EQUIPMENT MATRIX
Core production and inspection equipment
Core equipment supports solder paste printing, 3D SPI, high-speed placement, reflow, AOI, X-Ray, first-article inspection, electrical measurement and functional verification.
01

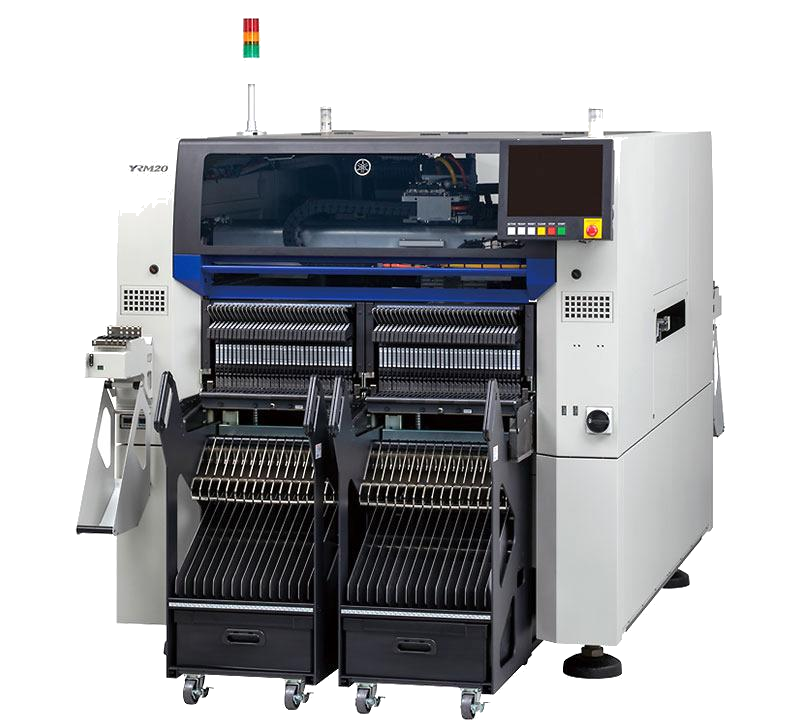

High-speed placement machine
High-speed, high-precision component placement
02
Automatic solder paste printer
Controlled solder paste printing and process setup
03
3D SPI
Solder paste volume and offset measurement
04
Reflow oven
Controlled temperature zones and reflow profiles
05
Inline AOI
High-volume visual solder-joint screening
06
X-Ray
Hidden-joint inspection for BGA and QFN packages
07

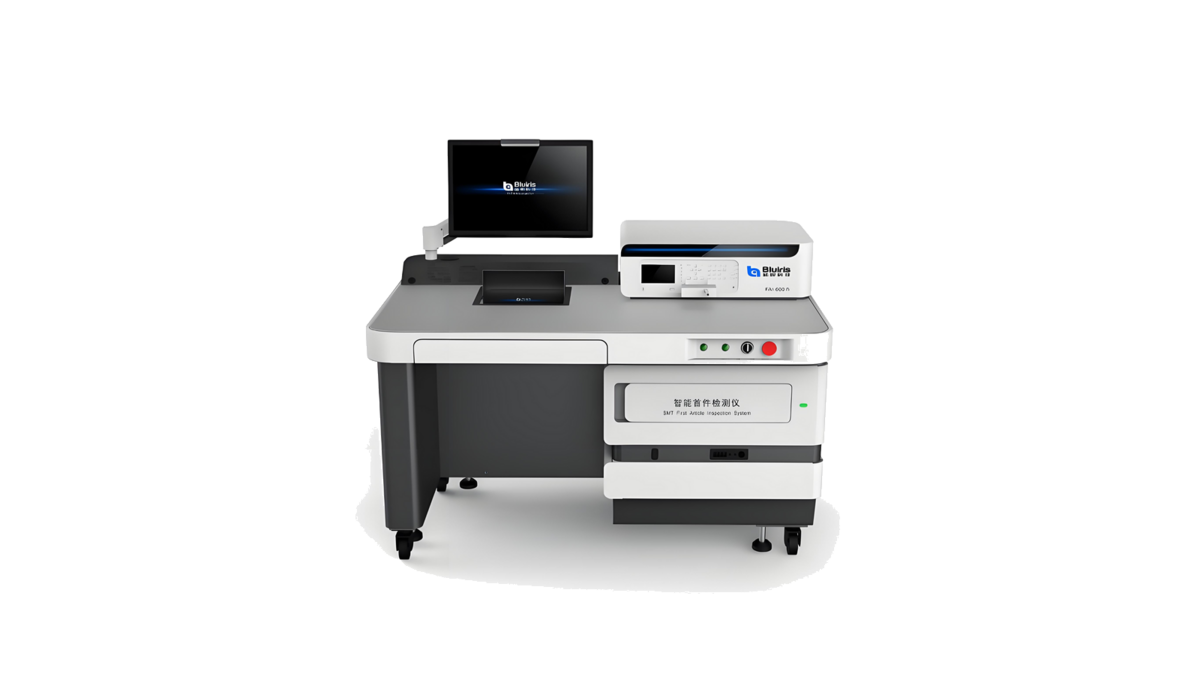

FAI inspection
First-article component, joint and parameter verification
08
LCR meter
Resistance, capacitance and inductance measurement
09
Functional test
Project-level function verification and result control
FAQ
Questions about Manufacturing Capabilities & Quality
Project-specific limits and standards are confirmed during review.
Gerber, BOM, CPL / PnP, quantity, test, programming, packaging and target delivery requirements are recommended.
